4560197 Caterpillar Boom cylinder seal kit

Product Overview

The 456-0197 Caterpillar Boom Cylinder Seal Kit is designed for various Caterpillar excavators, including models like the 320, 320D, 320E, and 323. This kit contains all necessary seals for a complete hydraulic cylinder reseal, ensuring efficient and reliable operation.

Key Features

• Genuine Cat® Seals: Includes proprietary materials and patented designs for superior performance and durability.
• Comprehensive Solution: Provides all seals required for a complete reseal, crucial for time-sensitive repairs.
• Wide Compatibility: Suitable for a range of Caterpillar excavators, ensuring broad application.

Compatible Models

• Excavators: 320, 320D L, 320E L, 320D2 GC, 325, 323, and more.

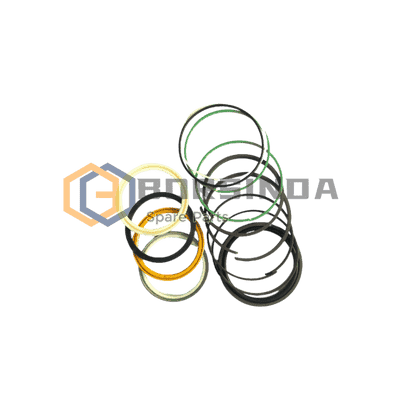

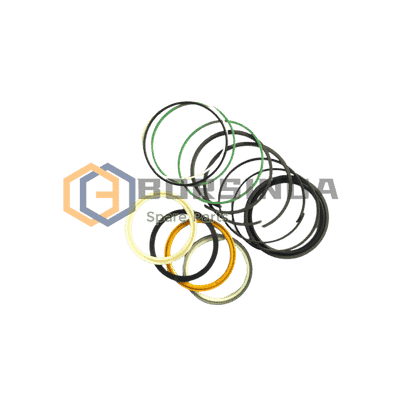

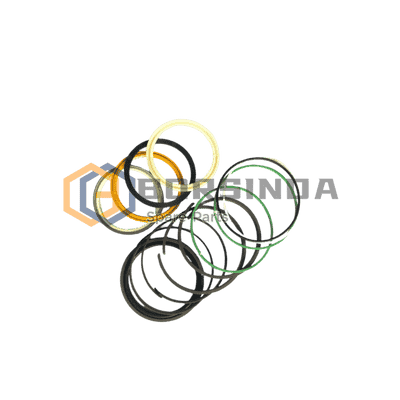

Kit Contents

The seal kit typically includes the following components:

• O-Rings: Prevent fluid leaks.
• Sealing Rings: Ensure the hydraulic cylinder’s sealing performance.
• Dust Seals: Prevent dust and debris from entering the hydraulic cylinder.
• Guide Rings: Ensure smooth movement of the piston rod.

Instructions for Use

1. Disassemble the Hydraulic Cylinder: Ensure the equipment is in a safe state and disassemble the hydraulic cylinder.
2. Clean Components: Clean all components to ensure they are free of dirt and debris.
3. ｒｅｐｌａｃｅ Seals: Use new seals to ｒｅｐｌａｃｅ the old ones, ensuring correct installation.
4. Reassemble the Hydraulic Cylinder: Reassemble the hydraulic cylinder following the reverse order of disassembly.
5. Test the Equipment: Restart the equipment and check for leaks or other issues.

FAQ

Q1: What models are compatible with the 456-0197 Caterpillar boom cylinder seal kit? A1: This seal kit is compatible with various Caterpillar excavators, including models 320, 320D L, 320E L, 320D2 GC, 325, and 323.

Q2: What components are included in the seal kit? A2: The kit typically includes O-rings, sealing rings, dust seals, and guide rings.

Q4: How do I install the seals in the hydraulic cylinder? A4: Disassemble the hydraulic cylinder, clean all components, ｒｅｐｌａｃｅ the old seals with new ones, reassemble the cylinder, and test the equipment for leaks or issues.

Q5: Why should I choose genuine Cat® seals? A5: Genuine Cat® seals are made with proprietary materials and patented designs, ensuring superior performance and durability.
