Name: R210W-9 Travel Motor Parts XJDD-00109 Rotary Group XJDD-00121
Brand: BORSINDA
SKU: 1345
Availability: InStock
Rating: 5.0 (153 reviews)

R210W-9 Travel Motor Parts XJDD-00109 Rotary Group XJDD-00121

Application: R210W-9，R210W-9A， R210W9AMH， R210W9-MH，

Part No: 31Q6-41010,31Q6-41700,XJDD-00121,XJDD-00121,XJDD-00140,XJDD-00141

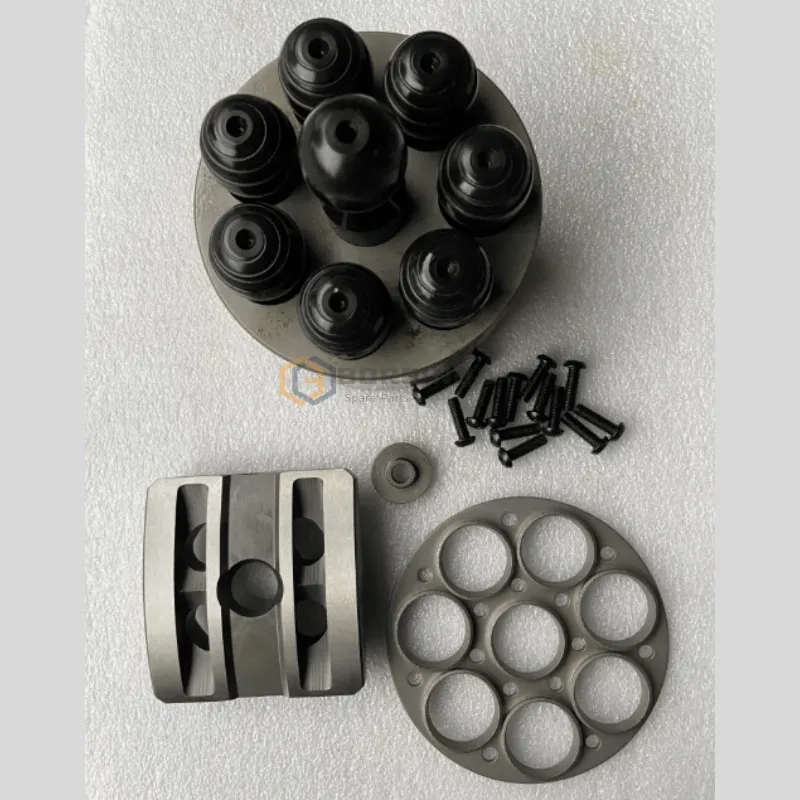

R210W-9 Travel Motor Parts XJDD-00109 Rotary Group XJDD-00121 (pic1)

Part No	Qty	Parts name
31Q6-41010	[1]	TRAVEL MOTOR
31Q6-41700	[1]	TRAVEL MOTOR
XJDD-01037	[1]	MOTOR UNIT
XJDD-01284	[1]	MOTOR UNIT
XJDD-00109	[1]	ROTARY GROUP
XJDD-00121	[1]	ROTARY-HYD SECTION
XJDD-00140	[]	CYLINDER
XJDD-00141	[1]	CONTROL LENS
XJDD-00142	[1]	PIN-CENTER
XJDD-00634	[7]	PISTON
XJDD-00144	[1]	SHIM(4.5T)-ADJUSTMENT
XJDD-00150	[1]	SPRING-PRESSURE
XJDD-01075	[1]	PLATE-RETAINING
XJDD-00635	[14]	SCREW
XJDD-00122	[1]	SHAFT-DRIVE
XJDD-00125	[1]	SHIM
XJDD-00128	[1]	PLATE(3.1T)-BACK UP
XJDD-00136	[1]	PLATE(3.15T)-BACK UP
XJDD-00129	[1]	PLATE(3.2T)-BACK UP
XJDD-00130	[1]	PLATE(3.25T)-BACK UP
XJDD-00131	[1]	PLATE(3.3T)-BACK UP
XJDD-00132	[1]	PLATE(3.35T)-BACK UP
XJDD-00133	[1]	PLATE(3.4T)-BACK UP
XJDD-00134	[1]	PLATE(3.45T)-BACK UP
XJDD-00135	[1]	PLATE(3.5T)-BACK UP
XJDD-00137	[1]	RING-RETAINING
XJDD-00138	[1]	BEARING-ROLLER
XJDD-00139	[1]	BEARING-ROLLER
XJDD-01086	[1]	HOUSING
XJDD-01010	[1]	SCREW-LOCKING
XJDD-00114	[1]	RING-RETAINING
XJDD-00115	[1]	RING-SHAFT SEAL
XJDD-00116	[1]	PLATE-BACK UP
XJDD-00117	[1]	O-ring
XJDD-01138	[1]	SCREW-LOCKING
XJDD-00111	[2]	PIN-THREADED
XJDD-00120	[2]	NUT-SEAL LOCK
@	[1]	CONTROL ASSY
@	[1]	COUNTER BALANCE VLV
@	[1]	Seal Kit
XJDD-01077	[1]	CONTROL
XJDD-00929	[1]	CONTROL PART
XJDD-00944	[1]	HOUSING-CONTROL
XJDD-00265	[1]	BUSHING-CONTROL
XJDD-01014	[1]	PISTON-CONTROL
XJDD-00267	[1]	BUSHING-ADJUSTING
XJDD-00268	[1]	COLLAR-SPRING
XJDD-00269	[1]	SPRING-PRESSURE
XJDD-00270	[1]	SPRING-PRESSURE
XJDD-00271	[1]	O-RING
XJDD-00272	[4]	BOLT-SOCKET
XJDD-00174	[2]	SCREW-LOCKING
XJDD-00273	[1]	RING-RETAINING
XJDD-00954	[1]	PIN-THREADED
XJDD-00275	[1]	PIN-CYLINDER
XJDD-00276	[1]	NUT-SEAL LOCK
XJDD-00277	[2]	PIN-D/BREAK OFF
XJDD-00278	[1]	DISC-RETAINING
XJDD-01079	[1]	STROKE LIMIT-HYD
XJDD-01095	[1]	HOUSING
XJDD-01096	[1]	PISTON
XJDD-00281	[1]	PISTON-CONTROL
XJDD-00338	[1]	SPRING-PRESSURE
XJDD-00282	[1]	SCREW-LOCKING
XJDD-00963	[1]	SCREW-LOCKING
XJDD-01097	[4]	SCREW-SOCKET HEAD
XJDD-00640	[1]	O-RING
XJDD-00966	[1]	SCREW-LOCKING
XJDD-00175	[2]	SCREW-LOCKING
XJDD-00286	[1]	ORIFICE
XJDD-00287	[1]	O-RING
XJDD-01019	[1]	SHIM
XJDD-00277	[8]	PIN-D/BREAK OFF
XJDD-00971	[1]	PISTON
XJDD-00972	[1]	PISTON-CONTROL
XJDD-00973	[1]	SPRING-PRESSURE
XJDD-00974	[1]	O-RING
XJDD-00975	[1]	SHIM
XJDD-01080	[1]	PLATE-PORT
XJDD-00652	[1]	PISTON-POSITIONING
XJDD-00642	[1]	TRUNNION-POSITIONING
XJDD-01083	[1]	PISTON-W/PISTON RINGS
XJDD-00644	[1]	PIN-THREADED
XJDD-01085	[2]	GUIDE-VALVE
XJDD-00253	[2]	BOLT
XJDD-01088	[2]	SCREW-THROTTLE
XJDD-00254	[2]	BUSHING
XJDD-01089	[8]	SCREW-SOCKET HEAD
XJDD-00257	[2]	O-RING
XJDD-00258	[10]	O-RING
XJDD-00259	[2]	O-RING
XJDD-00329	[2]	RING-BACK UP
XJDD-00646	[1]	SCREW-SOCKET HEAD
XJDD-00648	[2]	PIN-CYLINDER
XJDD-00178	[2]	PIN-D/BREAK OFF
XJDD-00181	[1]	PIN-D/BREAK OFF
XJDD-00287	[1]	O-RING
XJDD-00210	[2]	SCREW-LOCKING
XJDD-00622	[2]	RELIEF VALVE
XJDD-01122	[1]	SEAL KIT
@	[AR]	NOT SUPPLIED PARTS

Product Models:	Hyundai R210W-9 Travel Motor Parts
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
