Name: PC490 PISTON PUMP PARTS 708-2J-13310 Piston Subassy
Brand: BORSINDA
SKU: 1350
Availability: InStock
Rating: 5.0 (153 reviews)

PC490 PISTON PUMP 708-2J-01010 With 708-2J-04140 BLOCK ROTARY

Application: Komatsu PC490 excavator

Part No: 708-2J-00010,708-2J-01010,708-2J04140,708-2J-13350,708-2J-13340, 708-2J-13310

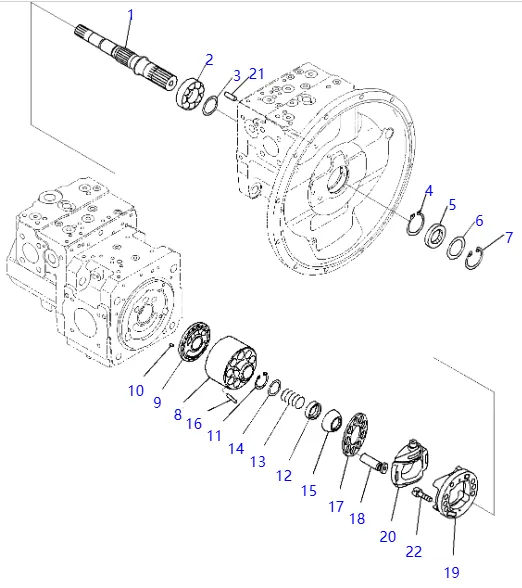

PC490 PISTON PUMP PARTS 708-2J-13310 Piston Subassy(pic1)

Part No	Qty	Parts name
708-2J-00010	[1]	Pump Assembly, Piston
708-2J-01010	[1]	Pump Subassembly
708-2J-12110	[1]	Shaft, Front
708-2J-12310	[1]	Bearing
708-2J-05110	[1]	Washer Kit
04064-06525	[1]	Ring, Snap, for Shaft Side
708-2J-12140	[1]	Seal, Oil
708-2J-12130	[1]	Spacer
04065-09030	[1]	Ring, Snap "2324013250", "R0406509030"
708-2J-04140	[1]	Block Assembly, Front
708-18-13230	[1]	Pin
04065-06525	[1]	Ring, Snap
708-2J-13130	[1]	Seat
708-2J-13150	[1]	Spring
708-2J-13140	[1]	Seat
708-2J-13350	[1]	Guide, Retainer
708-2H-23360	[3]	Pin
708-2J-13340	[1]	Retainer, Shoe
708-2J-13310	[9]	Piston Subassembly
708-2J-04160	[1]	Cradle Subassembly
04020-01434	[1]	Pin, Dowel
01252-61235	[6]	Bolt, Hexagon Socket Head "801105554", "0125231235"
708-2J-00010	[1]	Pump Assembly, Piston
708-2J-01010	[1]	Pump Subassembly
708-2J-12120	[1]	Shaft, Rear
708-2J-12310	[1]	Bearing
708-2J-05110	[1]	Washer Kit
04064-06525	[1]	Ring, Snap, for Shaft Side
708-2J-12160	[1]	Sleeve
708-2J-04150	[1]	Block Assembly, Rear
708-18-13230	[1]	Pin
04065-06525	[1]	Ring, Snap
708-2J-13130	[1]	Seat
708-2J-13150	[1]	Spring
708-2J-13140	[1]	Seat
708-2J-13350	[1]	Guide, Retainer
708-2H-23360	[3]	Pin
708-2J-13340	[1]	Retainer, Shoe
708-2J-13310	[9]	Piston Subassembly
708-2J-04160	[1]	Cradle Subassembly
04020-01434	[1]	Pin, Dowel
01252-61235	[6]	Bolt, Hexagon Socket Head "801105554", "0125231235"
708-2J-00010	[1]	Pump Assembly, Piston
708-2J-01010	[1]	Pump Subassembly
708-2J-14110	[1]	Slider
708-2J-03110	[1]	Valve Assembly, PC
708-2J-04170	[1]	Piston Assembly, Servo
708-2J-14130	[5]	Plug
708-2J-14140	[1]	Seal
708-2J-15110	[1]	Plug
708-2L-35760	[1]	Ball
708-2L-35770	[1]	Plug
708-2L-35690	[3]	Seal
708-2J-15120	[1]	Pin
708-3M-15670	[1]	Spool
708-2J-15130	[1]	Seat
708-2J-15140	[1]	Seat
708-2J-15150	[1]	Spring
708-2J-15160	[1]	Spring
708-2J-15180	[1]	Seat
708-2J-15170	[1]	Spring
708-2J-14250	[1]	Screw
07000-B3042	[1]	O-ring
708-2J-14230	[1]	Ring, Back-up
708-2J-14270	[1]	Seal
708-2J-15190	[1]	Plug
07000-B2014	[1]	O-ring
07000-B2055	[1]	O-ring
708-2J-14240	[1]	Ring, Back-up
708-2J-14210	[1]	Cover
01580-10806	[1]	Nut "801920104"
708-2L-35290	[1]	Nut
708-2J-14260	[1]	Ring, Wear
708-2J-14150	[2]	Seal Ring
01010-61860	[4]	Bolt "0101031860", "0101081860", "0104031860"
01643-31845	[4]	Washer "0164321845", "R0164331845"

Product Models:	PC490 piston pump parts
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
