Name: 9T-3714 9T-3870 Rotating Gp Pump 9T-3370 Barrel Cylinder
Brand: BORSINDA
SKU: 1348
Availability: InStock
Rating: 5.0 (153 reviews)

9T-3714 9T-3870 Rotating Gp Pump 9T-3370 Barrel Cylinder

Application: CAT 215B, E225,E231D

Part No. 9T-3714, 3T-3870,9T-3370,9T-3366,9T-3421,3T-3371

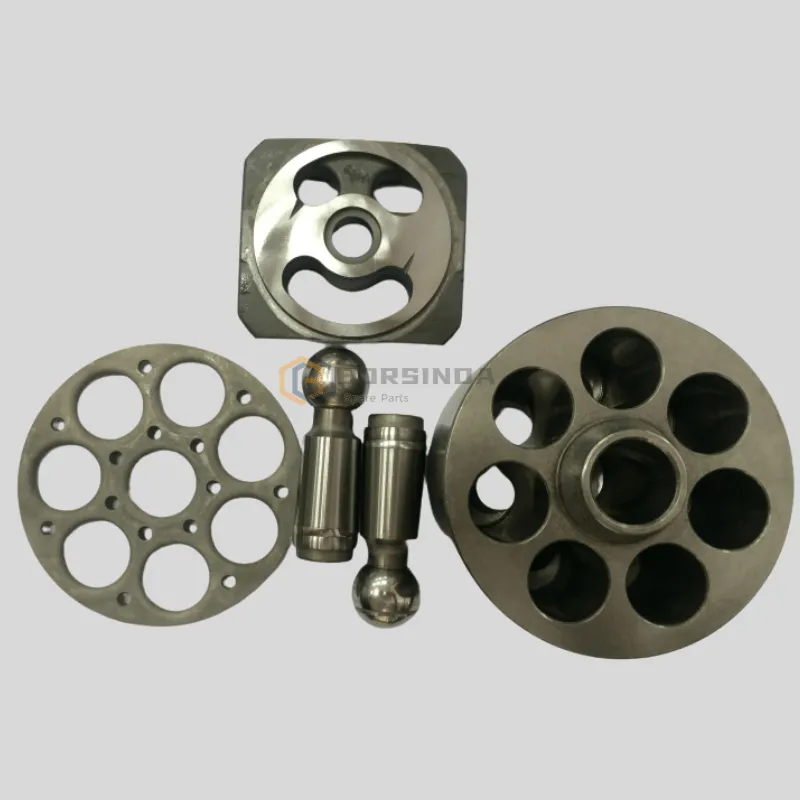

9T-3714 9T-3870 Rotating Gp Pump 9T-3370 Barrel Cylinder(pic1)

Part No	Qty	Parts name
9T-3714 Y	[1]	ROTATING GP-PUMP
9T-3870 Y	[1]	ROTATING GP-PUMP
9T-3415	[1]	HOUSING
9T-3375	[1]	COVER-FRONT
9T-3408	[1]	GEAR
9T-5914 C	[1]	SHAFT
9T-3409	[1]	COVER
068-9932	[1]	RING-RETAINING
9T-3869	[1]	SEAL
4M-0189	[1]	SEAL-O-ring
9T-3928	[1]	PLUG-HEX
9T-3930	[3]	PLUG-HEX
9T-3879	[1]	BEARING AS-CYLINDER
9T-5915 C	[1]	KEY-RECTANGULAR
9T-3882	[1]	BEARING AS
004-1964	[1]	SEAL-O-RING
9T-3743 B	[1]	SHIM
8N-7296	[1]	RETAINER-PIN
9T-3370	[1]	BARREL-CYLINDER
9T-4221 Y	[1]	SHAFT GP
9T-3366	[1]	PLATE-RETAINING
9T-3421	[1]	PLATE-PORT
9T-3745	[14]	RING
9T-3369	[1]	PIN-CENTERING
9T-3371	[7]	PISTON
9T-3391 B	[1]	SPACER-SPRING 5.3MM(.209IN)THK
9T-3392 B	[1]	SPACER-SPRING 5.4MM(.213IN)THK
9T-3393 B	[1]	SPACER-SPRING 5.5MM(.217IN)THK
9T-3394 B	[1]	SPACER-SPRING 5.6MM(.220IN)THK
9T-3395 B	[1]	SPACER-SPRING 5.7MM(.224IN)THK
9T-3396 B	[1]	SPACER-SPRING 5.8MM(.228IN)THK
9T-3397 B	[1]	SPACER-SPRING 5.9MM(.232IN)THK
9T-3368	[4]	SPRING-BELLVILLE
9T-3370	[1]	BARREL-CYLINDER
9T-4222 Y	[1]	SHAFT GP-STUB
9T-3366	[1]	PLATE-RETAINING
9T-3422	[1]	PLATE-PORT
9T-3745	[14]	RING
9T-3369	[1]	PIN-CENTERING
9T-3371	[7]	PISTON
9T-3391 B	[1]	SPACER-SPRING 5.3MM(.209IN)THK
9T-3392 B	[1]	SPACER-SPRING 5.4MM(.213IN)THK
9T-3393 B	[1]	SPACER-SPRING 5.5MM(.217IN)THK
9T-3394 B	[1]	SPACER-SPRING 5.6MM(.220IN)THK
9T-3395 B	[1]	SPACER-SPRING 5.7MM(.224IN)THK
9T-3396 B	[1]	SPACER-SPRING 5.8MM(.228IN)THK
9T-3397 B	[1]	SPACER-SPRING 5.9MM(.232IN)THK
9T-3368	[4]	SPRING-BELLVILLE
9T-3370	[1]	BARREL-CYLINDER
124-9929	[1]	PLATE-CONTROL
124-9930	[1]	PIN-CENTER
165-6976	[7]	PISTON AS
9T-3745	[2]	RING
124-9932 B	[1]	SHIM (3.50MM THK)
124-9933 B	[1]	SHIM (3.60MM THK)
124-9934 B	[1]	SHIM (3.70MM THK)
124-9935 B	[1]	SHIM (3.80MM THK)
124-9936 B	[1]	SHIM (3.90MM THK)
124-9937 B	[1]	SHIM (4.00MM THK)
124-9938	[1]	SPRING
167-6701	[1]	PLATE-RETAINING
113-4419	[14]	SCREW (TORX)

Product Models:	9T-3370 BARREL CYLINDER
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
