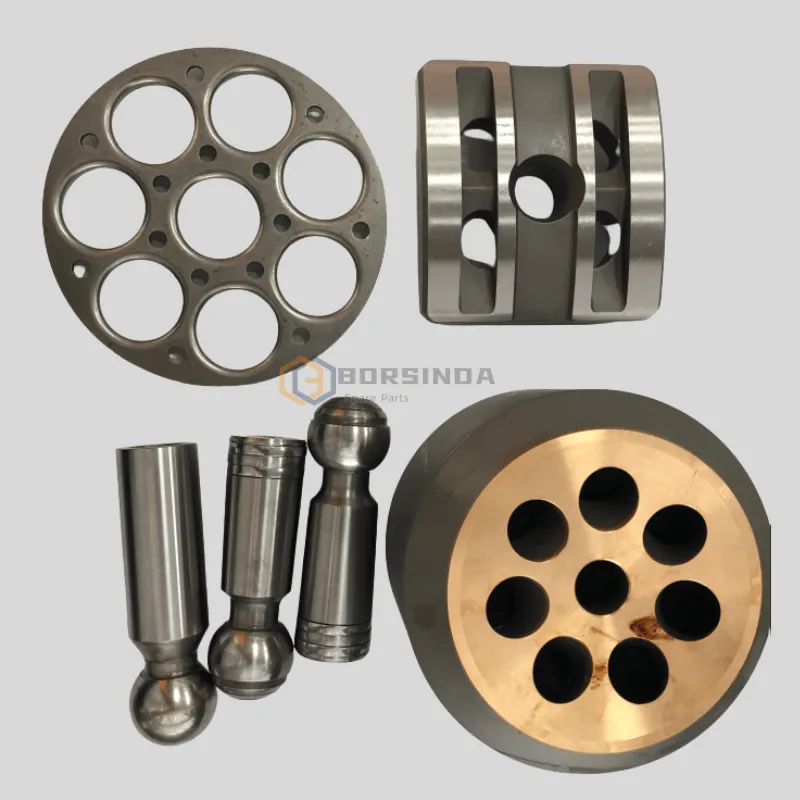

Name: R210W-9 Travel Motor Parts 31Q6-41010 31Q6-41700 Rotary Group ZGAR-00271
Brand: BORSINDA
SKU: 1349
Availability: InStock
Rating: 5.0 (153 reviews)

R210W-9 Travel Motor Parts 31Q6-41010 31Q6-41700 Rotary Group ZGAR-00271

Application: Hyundai Wheel excavator R210W7,R210W-9,R210W9A,R210W9MH,R210W9S, HW210

Part No. 31N6-45010, 31Q6-41010, 31Q6-41700, ZGAR-00271, ZGAR-00282, ZGAR-00297, ZGAR-00298, ZGAR-00311, ZGAR-00299,

Part No	Qty	Parts name
31N6-45010	[1]	TRAVEL MOTOR
@	[1]	MOTOR UNIT
ZGAR-00271	[1]	ROTARY GROUP
ZGAR-00282	[1]	ROTARY-HYD SECTION
ZGAR-00297	[1]	CYLINDER
ZGAR-00298	[1]	CONTROL LENS
ZGAR-00299	[1]	PIN-CENTER
ZGAR-00311	[7]	PISTON
ZGAR-00312	[14]	RING-STEEL
ZGAR-00301	[1]	SHIM-ADJUSTMENT
ZGAR-00307	[1]	SPRING-PRESSURE
ZGAR-00309	[1]	PLATE-RETAINER
ZGAR-00310	[14]	SCREW
ZGAR-00283	[1]	SHAFT-DRIVE
ZGAR-00284	[1]	SHIM
ZGAR-00285	[1]	PLATE-BACK UP
ZGAR-00294	[1]	RING-RETAINING
ZGAR-00295	[1]	BEARING-ROLLER
ZGAR-00296	[1]	BEARING-ROLLER
ZGAR-00273	[1]	HOUSING
ZGAR-00274	[1]	SCREW-LOCKING
ZGAR-00275	[1]	RING-RETAINING
XJDD-00115	[1]	RING-SHAFT SEAL
ZGAR-00277	[1]	PLATE-BACK UP
XJDD-00117	[1]	O-RING
ZGAR-00279	[1]	SCREW-LOCKING
ZGAR-00280	[2]	PIN-THREADED
XJDD-00120	[2]	NUT-SEAL LOCK
@	[1]	CONTROL ASSY
@	[1]	COUNTER BALANCE VLV
XJDD-00685	[1]	Seal Kit
Part No	Qty	Parts name
@	[1]	TRAVEL MOTOR
ZGAR-00272	[1]	CONTROL ASSY
ZGAR-00314	[1]	COVER ASSY
ZGAR-00350	[1]	COVER
ZGAR-00351	[1]	SCREW-THROTTLE
ZGAR-00352	[4]	SCREW-SOCKET HEAD
XJDD-00640	[1]	O-RING
ZGAR-00343	[1]	SCREW-LOCKING
ZGAR-00315	[1]	PLATE-PORT
ZGAR-00317	[1]	TRUNNION-POSITIONING
ZGAR-00318	[1]	PISTON
ZGAR-00319	[1]	PIN-THREADED
ZGAR-00320	[8]	SCREW-SOCKET HEAD
XJDD-00258	[3]	O-RING
ZGAR-00325	[1]	SCREW-SOCKET HEAD
ZGAR-00326	[3]	RING-SQUARE
ZGAR-00327	[2]	PIN-CYLINDER
ZGAR-00328	[1]	PIN-D/BREAK OFF
ZGAR-00330	[1]	PIN-D/BREAK OFF
XJDD-00287	[1]	O-RING
ZGAR-00332	[2]	SCREW-LOCKING
ZGAR-00333	[2]	RELIEF VALVE
@	[1]	MOTOR UNIT
@	[1]	COUNTER BALANCE VLV
XJDD-00685	[1]	SEAL KIT
Part No	Qty	Parts name
31N6-45011	[1]	TRAVEL MOTOR
31N6-45012	[1]	TRAVEL MOTOR
@	[1]	MOTOR UNIT
XJDD-00109	[1]	ROTARY GROUP
XJDD-00121	[1]	ROTARY-HYD SECTION
XJDD-00140	[1]	CYLINDER
XJDD-00141	[1]	CONTROL LENS
XJDD-00142	[1]	PIN-CENTER
XJDD-00634	[7]	PISTON
XJDD-00144	[1]	SHIM(4.5T)-ADJUSTMENT
XJDD-00150	[1]	SPRING-PRESSURE
XJDD-00151	[1]	PLATE-RETAINER
XJDD-00635	[14]	SCREW
XJDD-00122	[1]	SHAFT-DRIVE
XJDD-00125	[1]	SHIM
XJDD-00128	[1]	PLATE-BACK UP
XJDD-00137	[1]	RING-RETAINING
XJDD-00138	[1]	BEARING-ROLLER
XJDD-00139	[1]	BEARING-ROLLER
XJDD-00636	[1]	HOUSING
XJDD-00308	[1]	SCREW-LOCKING
XJDD-00114	[1]	RING-RETAINING
XJDD-00115	[1]	RING-SHAFT SEAL
XJDD-00116	[1]	PLATE-BACK UP
XJDD-00117	[1]	O-RING
XJDD-00118	[1]	SCREW-LOCKING
XJDD-00111	[2]	PIN-THREADED
XJDD-00120	[2]	NUT-SEAL LOCK
@	[1]	CONTROL ASSY
@	[1]	COUNTER BALANCE VLV
XJDD-00685	[1]	SEAL KIT

Product Models:	31N6-45010 Travel Motor Parts
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
