Name: Hitachi Final Drive Motor Parts HMGF57 HMGF78 Rotor Group 2040520
Brand: BORSINDA
SKU: 1262
Availability: InStock
Rating: 5.0 (153 reviews)

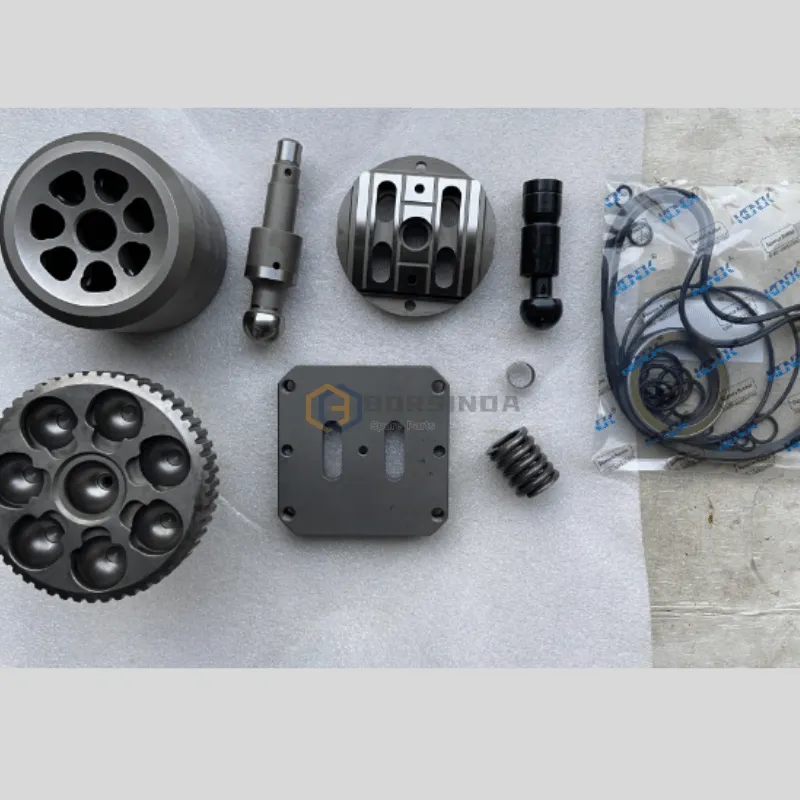

Hitachi Final Drive Motor Parts HMGF57 HMGF78 Rotor Group 2040520

Part No: 9155694,9149125,2040520,8068583,3078298,

Application: EX300-5,EX350,EX370,EX270,EX360

No	Part No	Qty	Parts name
	-9155694	[1]	MOTOR;OIL
	9149125	[1]	MOTOR;OIL
2	1019564	[1]	CASING;MOTOR
3	2040523	[1]	DISC;DRIVING
6	4199108	[1]	BRG.;ROL.
7	4199072	[1]	BRG.;ROL.
9	4191665	[1]	NUT;BRG.
10	4389598	[1]	SPACER
11	4191666	[1]	SEAL;OIL
12	4038529	[1]	RING;RETAINING
13	2040520	[1]	ROTOR
16	8068583	[7]	PISTON
18	3078298	[1]	SHAFT;CENTER
20	4194362	[1]	SPRING;COMPRES.
21	4198956	[1]	PIN
24	3036457	[4]	PLATE;FRICTION
25	3036456	[5]	PLATE
26	4193996	[1]	SPACER
27	3078190	[1]	PISTON
29	4252401	[1]	D-RING
30	4269474	[1]	D-RING
31	3054505	[1]	SPRING;DISC
33	4269473	[1]	O-ring
34	4506415	[1]	O-RING
35	-9158391	[1]	VALVE;BRAKE
35	9157762	[1]	VALVE;BRAKE
38	M341850	[4]	BOLT;SOCKET
40	2035236	[1]	PLATE
42	4364104	[2]	PIN;KNOCK
44	2040522	[1]	VALVE
46	4234628	[1]	BUSHING
49	4255238	[2]	PLUG
50	2040803	[1]	LINK
51	4262561	[1]	BOLT;REAMER
52	9157588	[1]	PISTON;SERVO
55	4260308	[2]	RING;PISTON
57	4265579	[1]	O-RING
61	9134112	[1]	PLUG
61A.	4506418	[1]	O-RING
63	9134109	[1]	PLUG
63A.	4506408	[1]	O-RING
64	4364921	[1]	COVER
65	M341225	[4]	BOLT;SOCKET
	9205359	[1]	MOTOR;OIL
	-9205360	[1]	MOTOR;OIL
2	1019564	[1]	CASING;MOTOR
3	2040523	[1]	DISC;DRIVING
6	4199108	[1]	BRG.;ROL.
7	4199072	[1]	BRG.;ROL.
9	4191665	[1]	NUT;BRG.
10	4389598	[1]	SPACER
11	4191666	[1]	SEAL;OIL
12	4038529	[1]	RING;RETAINING
13	2040520	[1]	ROTOR
16	8068583	[7]	PISTON
18	3078298	[1]	SHAFT;CENTER
20	4194362	[1]	SPRING;COMPRES.
21	4198956	[1]	PIN
24	3036457	[4]	PLATE;FRICTION
25	3036456	[5]	PLATE
26	4193996	[1]	SPACER
27	3078190	[1]	PISTON
29	4252401	[1]	D-RING
30	4269474	[1]	D-RING
31	3054505	[1]	SPRING;DISC
33	4269473	[1]	O-RING
34	4506415	[1]	O-RING
35	9157762	[1]	VALVE;BRAKE
35	-9158391	[1]	VALVE;BRAKE
38	M341850	[4]	BOLT;SOCKET
40	2035236	[1]	PLATE
42	4364104	[2]	PIN;KNOCK
44	2040522	[1]	VALVE
46	4234628	[1]	BUSHING
49	4255238	[2]	PLUG
50	2040803	[1]	LINK
51	4262561	[1]	BOLT;REAMER
52	3093136	[1]	PISTON;SERVO
57	4265579	[1]	O-RING
61	9134112	[1]	PLUG
61A.	4506418	[1]	O-RING
62	9134110	[1]	PLUG
62A.	957366	[1]	O-RING
63	9134109	[1]	PLUG
63A.	4506408	[1]	O-RING
64	4332406	[1]	COVER
65	M341225	[4]	BOLT;SOCKET
	9205359	[1]	MOTOR;OIL
	-9205360	[1]	MOTOR;OIL
2	1019564	[1]	CASING;MOTOR
3	2040523	[1]	DISC;DRIVING
6	4199108	[1]	BRG.;ROL.
7	4199072	[1]	BRG.;ROL.
9	4191665	[1]	NUT;BRG.
10	4389598	[1]	SPACER
11	4191666	[1]	SEAL;OIL
12	4038529	[1]	RING;RETAINING
13	2040520	[1]	ROTOR
16	8068583	[7]	PISTON
18	3078298	[1]	SHAFT;CENTER
20	4194362	[1]	SPRING;COMPRES.
21	4198956	[1]	PIN
24	3036457	[4]	PLATE;FRICTION
25	3036456	[5]	PLATE
26	4193996	[1]	SPACER
27	3078190	[1]	PISTON
29	4252401	[1]	D-RING
30	4269474	[1]	D-RING
31	3054505	[1]	SPRING;DISC
33	4269473	[1]	O-RING
34	4506415	[1]	O-RING
35	9157762	[1]	VALVE;BRAKE
35	-9158391	[1]	VALVE;BRAKE
38	M341850	[4]	BOLT;SOCKET
40	2035236	[1]	PLATE
42	4364104	[2]	PIN;KNOCK
44	2040522	[1]	VALVE
46	4234628	[1]	BUSHING
49	4255238	[2]	PLUG
50	2040803	[1]	LINK
51	4262561	[1]	BOLT;REAMER
52	3093136	[1]	PISTON;SERVO
57	4265579	[1]	O-RING
61	9134112	[1]	PLUG
61A.	4506418	[1]	O-RING
62	9134110	[1]	PLUG
62A.	957366	[1]	O-RING
63	9134109	[1]	PLUG
63A.	4506408	[1]	O-RING
64	4332406	[1]	COVER
65	M341225	[4]	BOLT;SOCKET

Product Models:	HMGF57AA Final Drive Motor Parts
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
