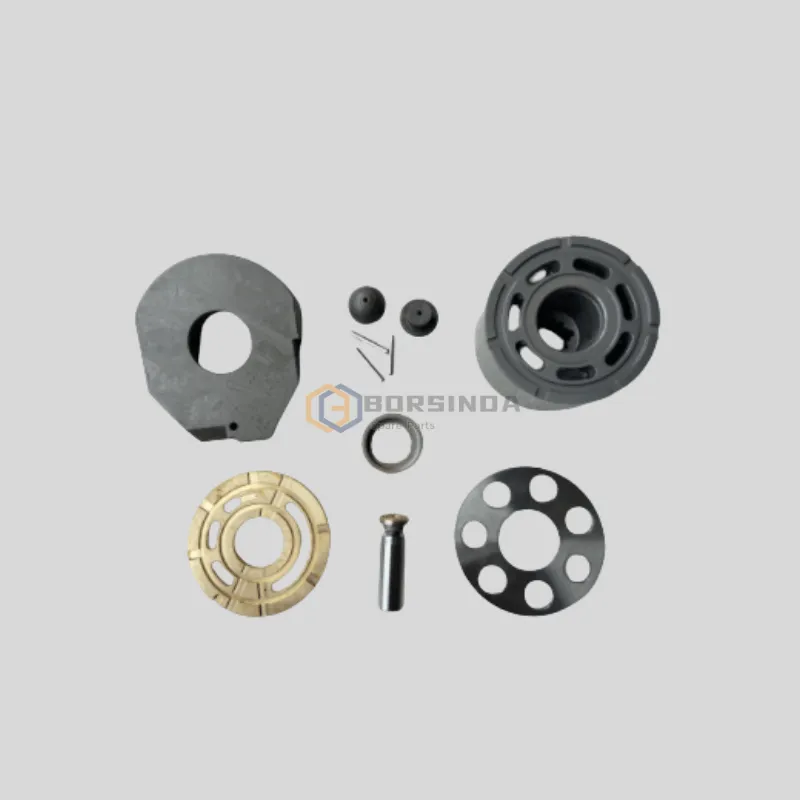

Komatsu WA380-6 Hydraulic fan pump Part 708-1S-13130 Rotary Groups
Part No: 708-1s-13130, 708-1s-13450, 708-1s-13370, 708-1s-13360,708-1s-13320
Application: Komatsu loaders WA380. WA400,WA430,WA450,WA470,WA480
| Pos. | Part No | Qty | Parts name |
| 708-1S-00940 | [1] | Pump Assembly, Fan "7081S01940", "7081S00920", "7081S00970", "7081S01970" | |
| 1 | 708-1S-12320 | [1] | Shaft China |
| 2 | 706-73-40890 | [1] | Bearing "7088E12141" |
| 3 | 708-1S-12260 | [1] | Bearing |
| 4 | 708-7T-05020 | [1] | Spacer Kit |
| 5 | 708-1S-12280 | [1] | Ring, Wear |
| 6 | 708-1S-12330 | [1] | Retainer |
| 7 | 708-1S-12340 | [1] | Case |
| 8 | 708-1T-11880 | [1] | Seal, Oil |
| 9 | 207-09-11140 | [1] | O-ring |
| 10 | 04065-06220 | [1] | Ring, Snap |
| 11 | 708-1S-13130 | [1] | Block, Cylinder |
| 12 | 708-1S-13450 | [1] | Plate, valve R7081S13450 |
| 13 | 708-3S-13160 | [2] | Washer China |
| 14 | 708-3S-13430 | [1] | Spring |
| 15 | 04065-03515 | [1] | Ring, Snap |
| 16 | 708-1S-13370 | [1] | Guide, Retainer "7083S13370", "R7081S13370" |
| 17 | 708-1S-13380 | [3] | Pin |
| 18 | 708-1S-13360 | [1] | Retainer, Shoe "R7081S13360" |
| 19 | 708-1S-13320 | [7] | Piston Subassembly "R7081S13320" |
| 20 | 708-1S-14210 | [1] | Plug China |
| 21 | 708-3S-14261 | [1] | Plug China |
| 22 | 07002-11223 | [2] | O-ring China "0700201223" |
| 23 | 708-3S-14290 | [1] | Piston Subassembly "7081S14230", "7083S14250" |
| 24 | 708-1S-14241 | [1] | Spring |
