SHAFT DRIVE F FITS Caterpillar CAT E324 E325 325 E329 AP14 PUMP
Part No. 2254543,2003263,173-3391,2254544,2003325,173-3392,2244541,
Application: CAT 324D/325D/328D/329D/M325D

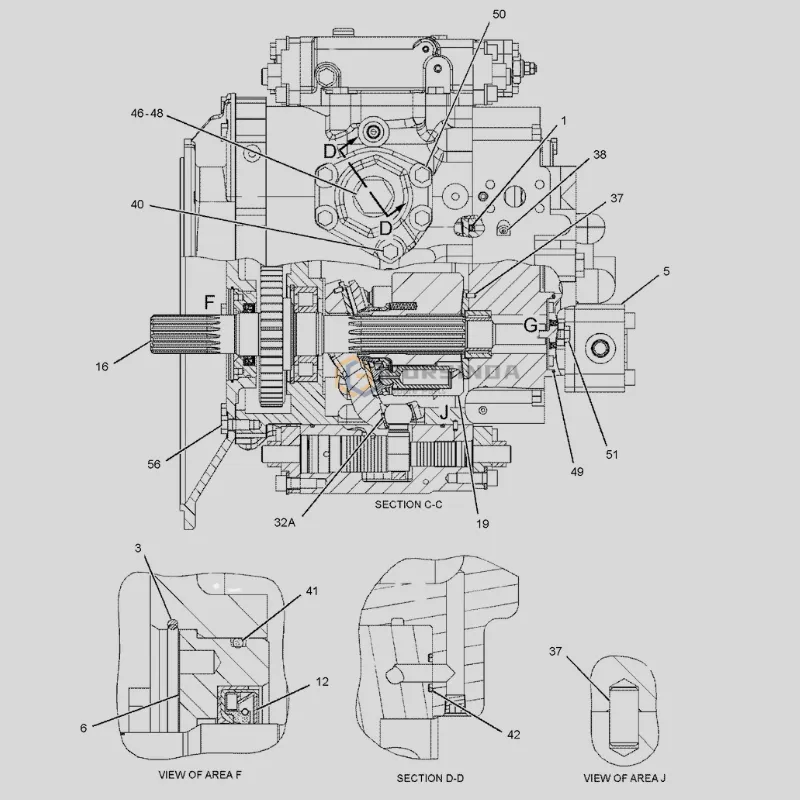

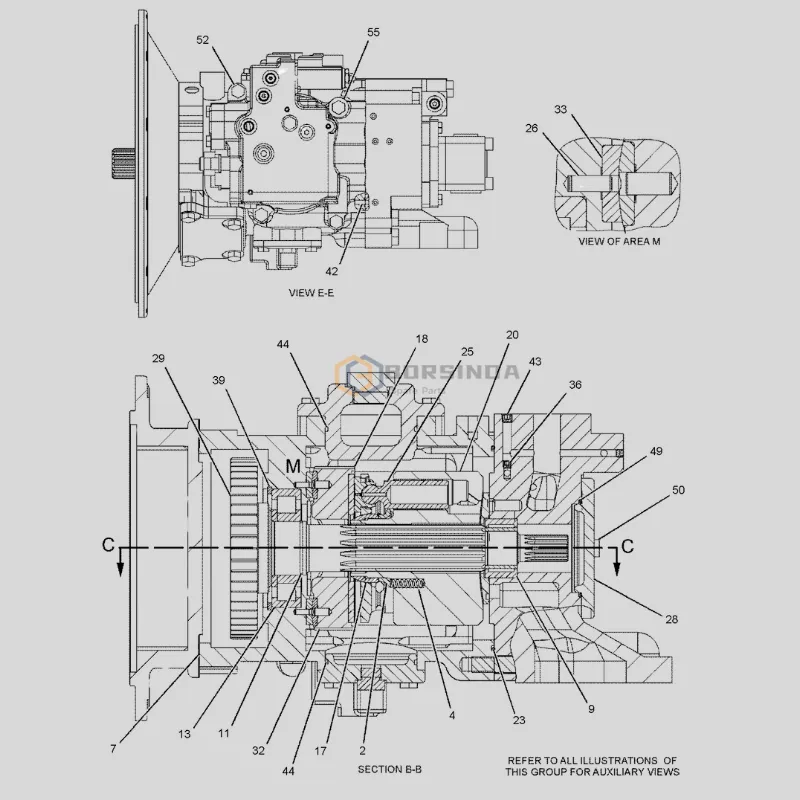

| No | Part No | Qty | Description |
| 1 | 4I-1022 | [2] | ORIFICE |
| 2 | 7Y-4215 | [2] | SPACER |
| 3 | 096-3983 | [1] | RING-RETAINING |
| 4 | 096-4389 | [18] | SPRING |
| 5 | 126-2016 | [1] | PUMP GP-GEAR (PILOT) |
| 9T-0835 | [1] | RING-RETAINING | |
| 250-2503 | [1] | KIT-SEAL (PILOT Gear pump) | |
| 6 | 129-7854 | [1] | CASE |
| 7 | 129-7855 | [1] | GASKET |
| 8 | 129-7857 | [1] | GASKET |
| 9 | 263-7474 | [2] | SET-BEARING |
| 10 | 129-7863 | [1] | COVER |
| 11 | 129-7921 | [2] | RING-RETAINING |
| 12 | 341-2862 | [1] | SEAL-LIP TYPE |
| 13 | 129-7927 | [2] | BEARING |
| 14 | 129-7979 | [4] | DOWEL |
| 15 | 150-5782 | [2] | COVER |
| 16 | 225-4541 | [1] | SHAFT-DRIVE |
| 17 | 173-3427 | [2] | GUIDE-BALL |
| 18 | 129-7853 | [2] | PLATE |
| 19 | 256-0081 | [1] | BARREL AS-DRIVE |
| 20 | 256-0083 | [1] | BARREL AS-PUMP |
| 21 | 177-2470 | [1] | COVER |
| 22 | 177-2471 | [1] | COVER |
| 23 | 273-8314 | [1] | SEAL-O-RING |
| 24 | 179-9763 | [1] | FLANGE |
| 25 | 188-4210 | [2] | PISTON AS |
| 26 | 192-0573 | [4] | PIN-DOWEL |
| 27 | 200-3333 | [1] | HEAD-PUMP |
| 28 | 200-3334 | [1] | COVER |
| 29 | 225-4542 | [1] | SHAFT-DRIVEN |
| 30 | 256-0074 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 31 | 256-0077 Y | [1] | ACTUATOR GP-PUMP (DRIVEN) |
| 32 | 373-9516 | [2] | SWASHPLATE AS |
| 094-1875 | [1] | DOWEL | |
| 32A. | 173-3428 | [1] | BUSHING |
| 242-6803 | [2] | PIN-DOWEL | |
| 33 | 373-9518 | [4] | BEARING AS |
| 34 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
| 35 | 247-8782 | [1] | BODY |
| 36 | 247-8920 | [2] | ORIFICE |
| 37 | 094-1875 | [6] | DOWEL |
| 38 | 094-1882 | [16] | PLUG |
| 39 | 095-0946 | [2] | RING-RETAINING |
| 41 | 096-3944 | [1] | SEAL-O-RING |
| 42 | 189-9763 | [8] | SEAL-O-RING |
| 43 | 190-4896 | [2] | PLUG |
| 44 | 193-1736 | [4] | SEAL-O-RING |
| 45 | 3K-0360 | [2] | SEAL-O-RING |
| 46 | 7M-8485 | [2] | SEAL-O-RING |
| 48 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) |
| 49 | 273-8315 | [2] | SEAL-O-RING |
