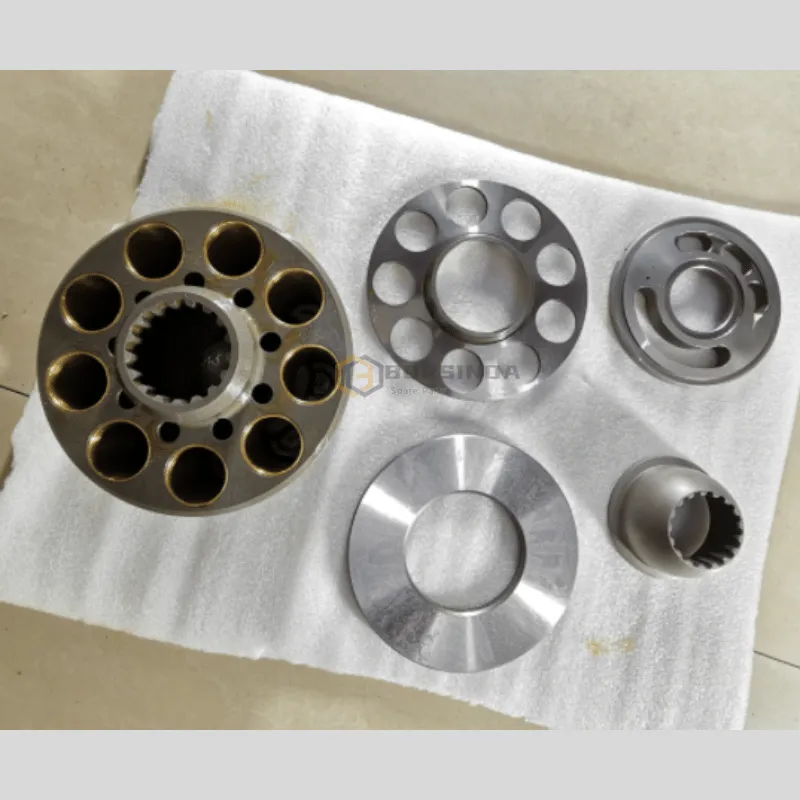

Aftermarket Kawasaki K5V212 Pump Rotary Group Kits for CAT345 349

Aftermarket Kawasaki K5V212 Pump Rotary Group Kits Hydraulic repair kits

Part No: 295-9426,295-9663

Application: excavator Hyundai R460,R485, CAT 345, CAT349, Sany SY485, SY500, Kobelco SK450-8, SK460-8,SK480-8

No	Part No	Qty	Description
1	295-9497 Y	[2]	HEAD GP-PUMP
2	342-1907	[1]	SHAFT-DRIVE
3	295-9499	[1]	SHAFT-DRIVEN
4	247-8713	[1]	BEARING-ROLLER
5	295-9500	[1]	BEARING-ROLLER
6	295-9693	[1]	BEARING-NEEDLE
7	247-8715	[1]	BEARING-NEEDLE
8	247-8944	[1]	BUSHING
9	247-8717	[2]	SPACER (65X90X1-MM THK)
10	295-9501	[1]	SPACER (49.5X73X3-MM THK)
11	247-8719	[1]	SPACER (50X64X3-MM THK)
12	247-8720	[1]	SPACER (95X110X3.2-MM THK)
13	295-9502	[2]	SPACER (55X69X3-MM THK)
14	295-9503	[1]	SPACER (104X120X3.2-MM THK)
15	247-8721	[1]	IMPELLER
16	295-9504	[2]	PLATE
17	295-9505	[2]	RETAINER-BALL
18	295-9506	[18]	SPRING
19	295-9507	[1]	FLANGE
20	295-9508	[1]	GEAR-DRIVE
21	295-9509	[1]	GEAR-DRIVEN
22	295-9510	[2]	PLATE
23	247-8725	[1]	PLATE
24	295-9511	[1]	PLATE
25	247-8726	[1]	COVER
26	259-0813	[1]	COVER
27	295-9512	[1]	COVER
28	497-8506	[1]	BODY AS
	371-7201	[7]	PLUG
29	497-8507	[1]	BLOCK
30	252-9167 M	[8]	BOLT-SOCKET HEAD (M8X1.25X30-MM)
31	6V-8200 M	[10]	BOLT-SOCKET HEAD (M12X1.75X35-MM)
32	8T-0343 M	[11]	BOLT-SOCKET HEAD (M12X1.75X55-MM)
33	249-1306 M	[9]	BOLT-SOCKET HEAD (M22X2.5X60-MM)
34	249-1307 M	[2]	BOLT-SOCKET HEAD (M22X2.5X95-MM)
35	249-1308 M	[1]	BOLT-SOCKET HEAD (M22X2.5X180-MM)
36	8T-9080 M	[8]	BOLT-SOCKET HEAD (M12X1.75X20-MM)
37	110-5525	[4]	PLUG
38	206-9290	[8]	SEAL-O-ring
39	196-3784	[8]	PLUG
40	7I-8164	[4]	ORIFICE (1/16-NPTF)
41	170-9997	[2]	PLUG
42	242-6914	[2]	PISTON-SERVO
43	7I-8166	[2]	STOPPER
44	242-6915	[2]	STOPPER
45	247-8729	[2]	COVER
46	109-1296	[2]	SEAL-O-RING
47	236-6919	[1]	SEAL-O-RING
48	249-6657	[1]	SEAL-O-RING
49	347-6530	[9]	SEAL-RECTANGULAR
50	206-9291	[2]	SEAL-O-RING
51	214-7568	[4]	SEAL-O-RING
52	109-1294	[2]	SEAL-O-RING
53	249-6670	[1]	SEAL-O-RING
54	326-4415	[2]	GASKET
55	295-9695	[1]	SEAL-LIP TYPE
56	7I-8171	[2]	RING-BACKUP
57	7I-8172	[2]	RING-BACKUP
58	451-2184 M	[2]	NUT (M20X2.5-THD)
59	242-6918 M	[2]	NUT (M20X2.5-THD)
60	8T-4241	[2]	RING-RETAINING
61	095-0929	[2]	RING-RETAINING
62	096-5516	[2]	RING-RETAINING (EXTERNAL)
63	095-0944	[1]	RING-RETAINING
64	247-8787	[1]	RING-RETAINING
65	295-9516	[1]	RING
66	247-8730	[1]	RING-RETAINING
67	234-4539	[2]	DOWEL
68	095-0882	[4]	PIN-SPRING
69	295-9517	[1]	DOWEL
70	247-8786	[2]	DOWEL
71	247-8985	[4]	DOWEL
72	242-6919 M	[2]	SETSCREW (M20X2.5X56-MM)
73	200-3292 M	[2]	SETSCREW (M20X2.5X90-MM)
74	373-9477	[11]	WASHER
75	488-4578	[2]	PIN AS
76	342-1906 Y	[1]	PUMP GP-GEAR (PILOT)
77	465-1024	[2]	PISTON AS
78	311-9505	[1]	BARREL AS-PUMP
79	311-9506	[1]	BARREL AS-PUMP

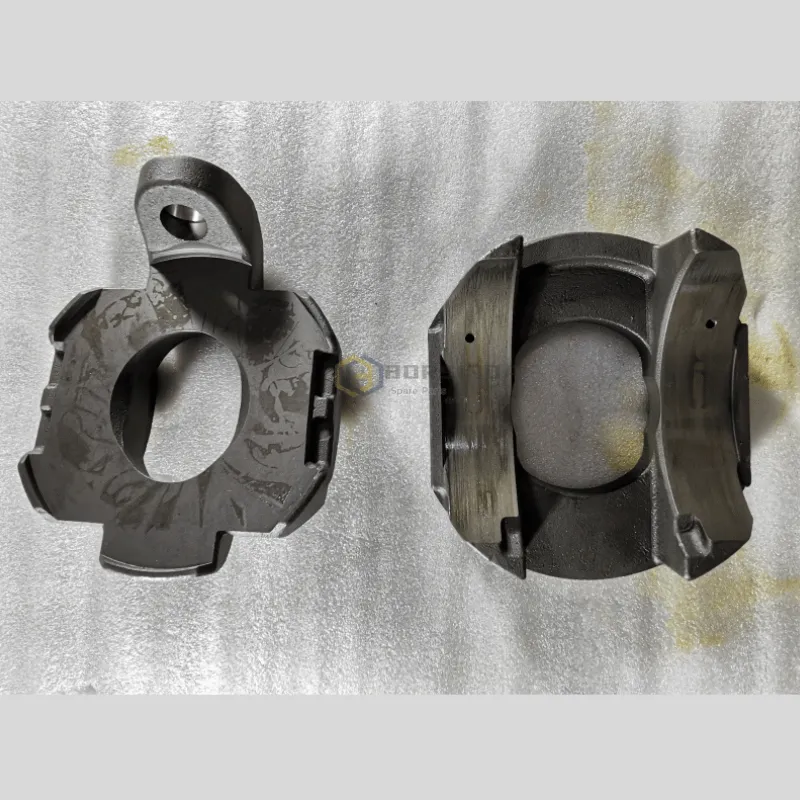

80	295-9521	[2]	SWASHPLATE AS
81	497-8514 Y	[1]	VALVE GP-SOLENOID (PUMP CONTROL)
82	206-9292	[2]	SEAL-O-RING

Product Models:	K5V212 Hydraulic pump parts
Place of Origin:	China
Packaging Details:	PP bag, Carton, Wooden cx, or as Required
Delivery Time：	1-7 work days
Payment Terms：	T/T, L/C, Alipay, Deposit, PayPal, D/P
