Aftermarket Hyundai Swing Motor Parts XKAY-00635

Hyundai R210-7 SWING MOTOR PARTS

Part No: XKAY-00528, XKAY-00635

Application: R200W7,R210LC7,R215LC7,R450LC7,R500LC7,RC215C7,RD210-7,RD510LC-7

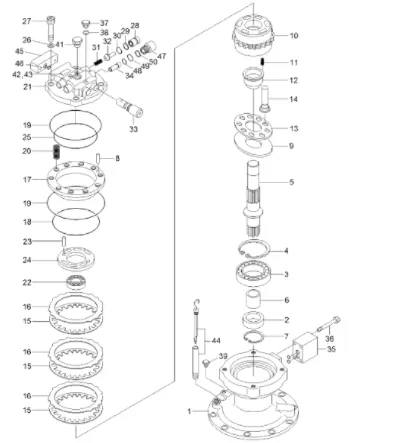

Borsinda Parts XKAY-00635 Rotary Kits for Hyundai Swing Motor PC210-7(pic1)

Pos.	Part No	Qty	Parts name
*-1.	31N6-10210	[1]	SWING MOTOR
*-1.	31N6-10210	[1]	SWING MOTOR
*-1.	31N6-10210	[1]	SWING MOTOR
1	XKAY-00520	[1]	BODY	31N6-10210-01
1	XKAY-00637	[1]	BODY	31N6-10210-02
1	XKAY-02096	[1]	BODY	31N6-10210-02
K2.	XKAY-00521	[1]	SEAL-OIL
3	XKAY-00522	[1]	BEARING-ROLLER
4	XKAY-00523	[1]	RING-SNAP
5	XKAY-00524	[1]	SHAFT
6	XKAY-00525	[1]	BUSHING
7	XKAY-00526	[1]	RING-STOP
8	XKAY-00286	[1]	PIN	31N6-10210
8	XKAY-00625	[1]	PIN	31N6-10210-01
9	XKAY-00527	[1]	PLATE-SHOE
A.	XKAY-00528	[1]	ROTARY KIT
A.	XKAY-00635	[1]	ROTARY KIT
A-A.	XKAY-00529	[1]	CYLINDER BLOCK KIT	31N6-10210-01
A-A.	XKAY-00634	[1]	CYLINDER BLOCK KIT	31N6-10210-02
10	XKAY-00530	[1]	CYLINDER BLOCK	31N6-10210-01
10	XKAY-00633	[1]	BLOCK-CYLINDER	31N6-10210-02
11	XKAY-00531	[9]	SPRING

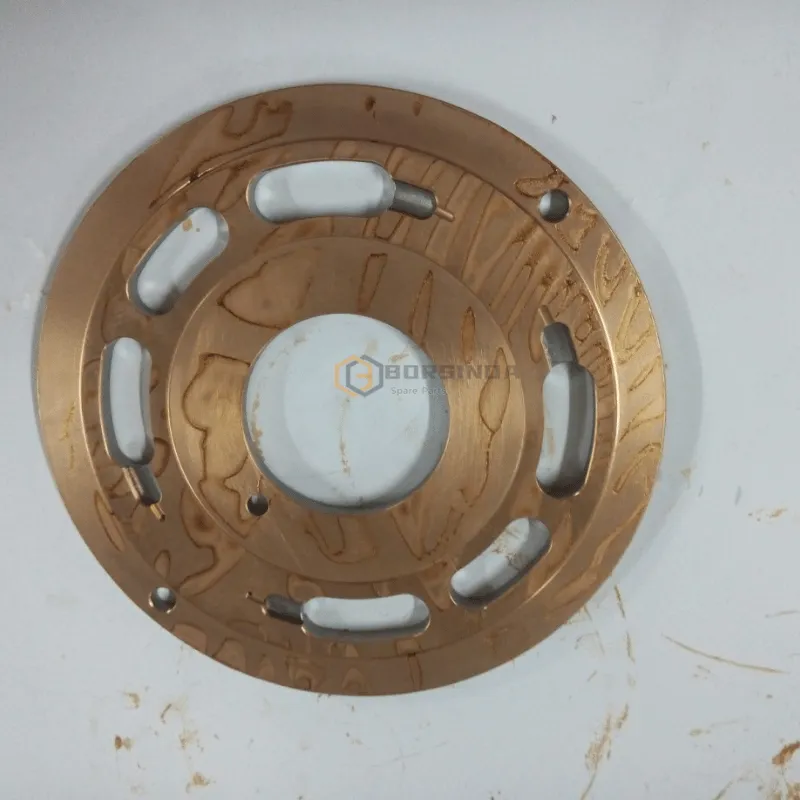

24	XKAY-00544	[1]	PLATE-VALVE
A-B.	XKAY-00532	[1]	RETAINER KIT
12	XKAY-00533	[1]	GUIDE-BALL
13	XKAY-00534	[1]	PLATE-SET
A-C.	XKAY-00535	[1]	PISTON KIT
14	XKAY-00536	[9]	PISTON ASSY

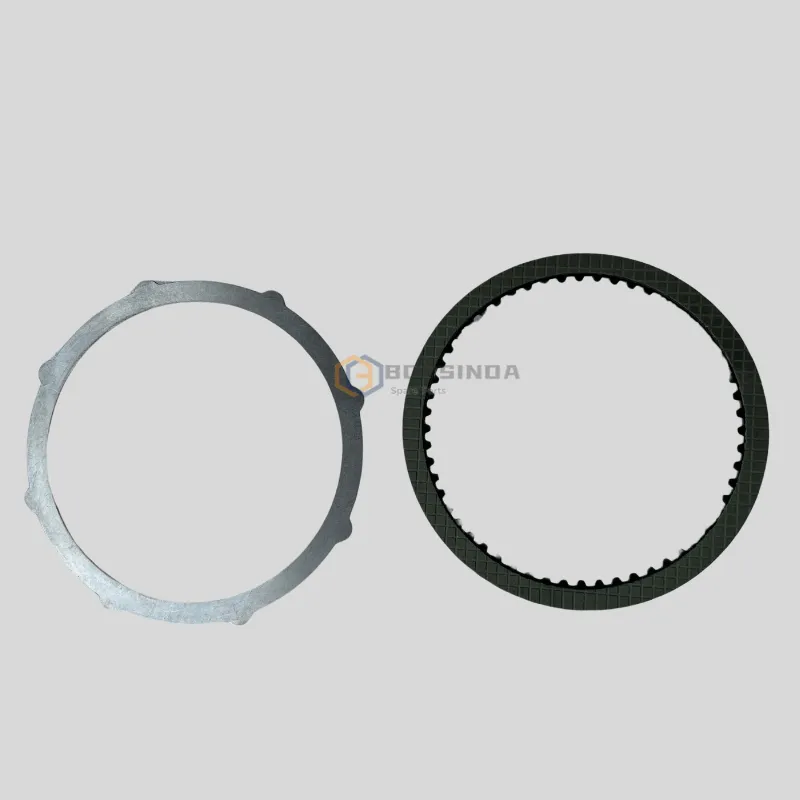

15	XKAY-00537	[3]	PLATE-FRICTION
16	XKAY-00538	[3]	PLATE
17	XKAY-00539	[1]	PISTON-BRAKE	31N6-10210
17	XKAY-00631	[1]	PISTON-BRAKE	31N6-10210-01
17	XKAY-00632	[1]	PISTON-BRAKE	31N6-10210-02
K18.	XKAY-00468	[1]	O-ring
K19.	XKAY-00540	[2]	O-RING
20	XKAY-00541	[20]	SPRING
21	XKAY-00542	[1]	COVER-REAR	31N6-10210
21	XKAY-00630	[1]	COVER-REAR	31N6-10210-01
22	XKAY-00543	[1]	BEARING-NEEDLE
23	XKAY-00382	[2]	PIN
25	XKAY-00545	[1]	O-RING
26	XKAY-01996	[4]	WASHER
26	XKAY-01996	[4]	WASHER
27	XKAY-00546	[4]	BOLT-WRENCH
28	XKAY-00309	[2]	PLUG
K29.	XKAY-00141	[2]	RING-BACK UP
K30.	XKAY-00310	[2]	O-RING
31	XKAY-00311	[2]	SPRING
32	XKAY-00312	[2]	CHECK
33	XKAY-00976	[2]	RELIEF VALVE ASSY
34	XKAY-00314	[2]	VLV ASSY-REACTIONLESS
35	XKAY-00315	[1]	TIME DELAY VALVE ASSY
36	XKAY-00149	[3]	BOLT-WRENCH
37	XKAY-00150	[1]	PLUG
K38.	XKAY-00151	[3]	O-RING
39	XKAY-00140	[1]	PLUG
41	XKAY-00548	[1]	PLUG
N42.	XKAY-00549	[1]	NAME PLATE
43	XKAY-00277	[2]	RIVET
44	XKAY-01986	[1]	GAUGE-LEVEL
44-1.	XKAY-01988	[1]	PLUG
45	XKAY-00551	[1]	FLANGE
K46.	XKAY-00552	[2]	O-RING
47	XKAY-00322	[2]	PLUG
K48.	XKAY-00324	[2]	O-RING
K49.	XKAY-00247	[2]	O-RING
K50.	XKAY-00605	[2]	RING-BACK UP
*-2.	@	[1]	SWING REDUCTION GEAR
K.	XKAY-00553	[1]	Seal Kit
